Wiring Diagrams

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1990 Pontiac Bonneville, 1990 Oldsmobile Ninety-Eight, 1990 Oldsmobile Eighty-Eight, 1990 Cadillac Fleetwood, and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Teves ABS Brake Lamp Wiring Diagram (Sub-Circuits)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Teves ABS Ignition Enable Wiring Diagram (Sub-Circuits)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Teves ABS Valve Wiring Diagram (Sub-Circuits)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Teves Anti-Lock Brake System Wiring Diagram (1989)

Courtesy of GENERAL MOTORS CORP.

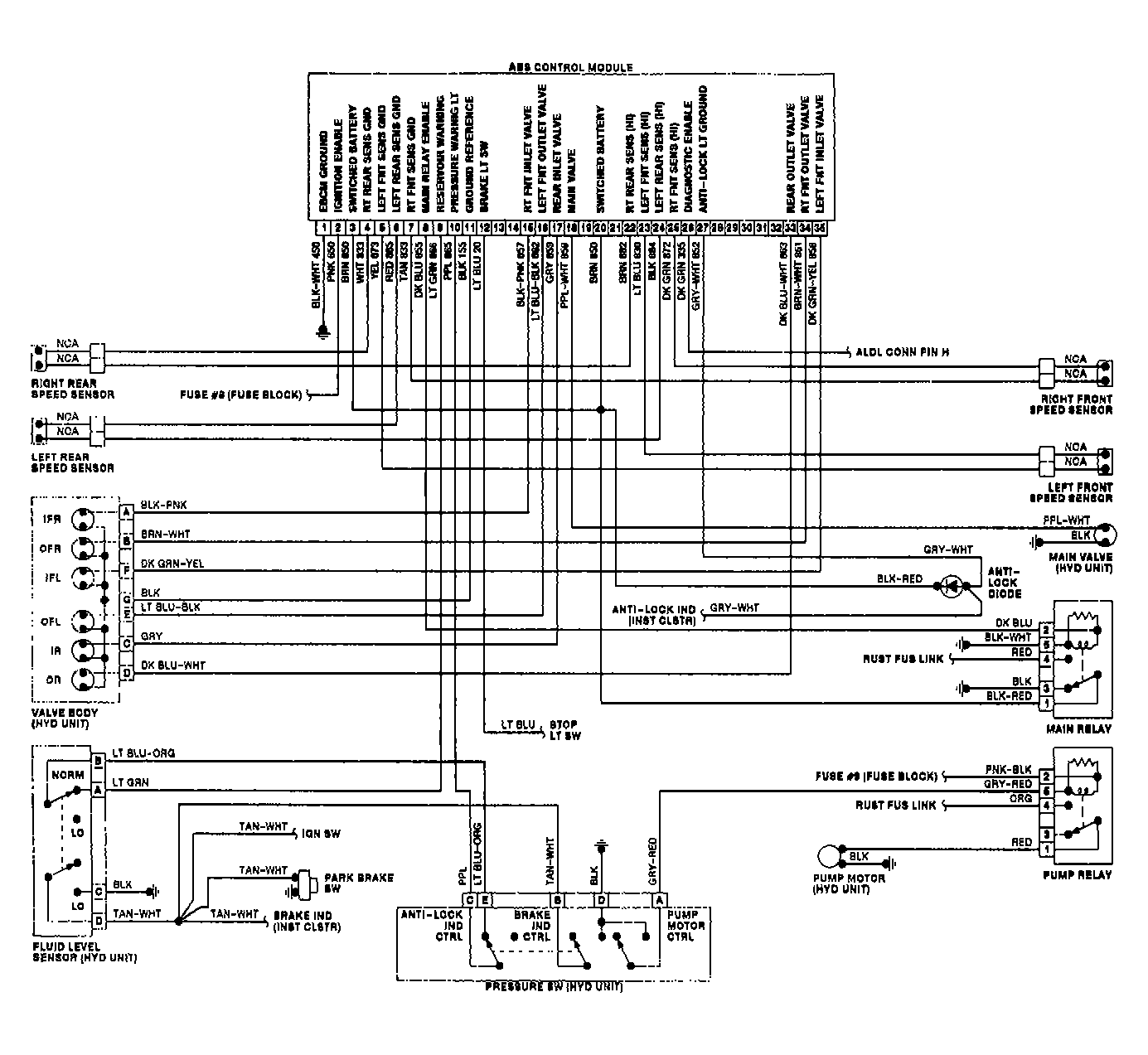

Fig 5: Teves ABS Wiring Diagram (1990 All Exc. DeVille & Fleetwood)

Courtesy of GENERAL MOTORS CORP.

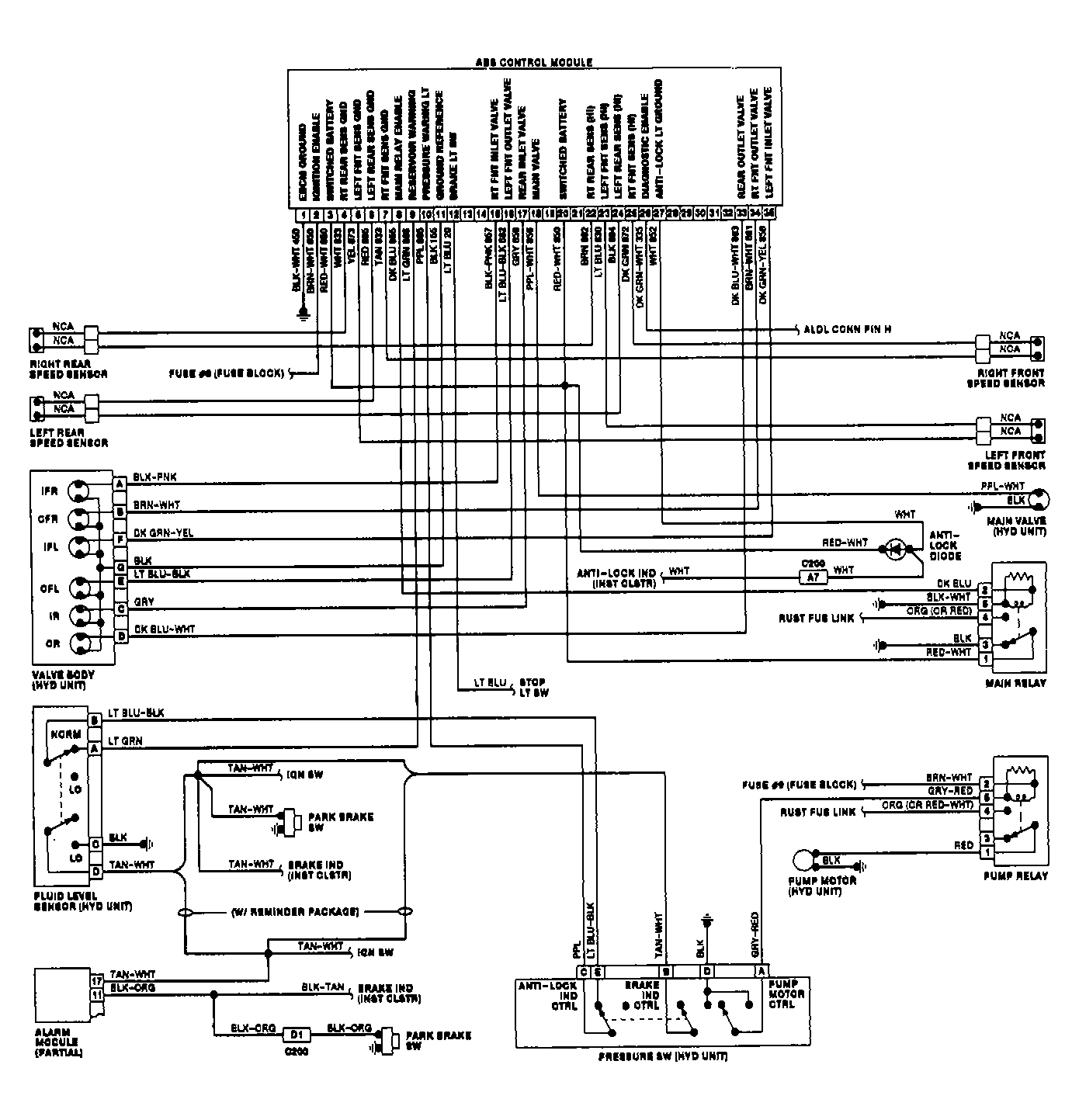

Fig 6: Teves ABS Wiring Diagram (1990 - De Ville & Fleetwood)

Courtesy of GENERAL MOTORS CORP.
