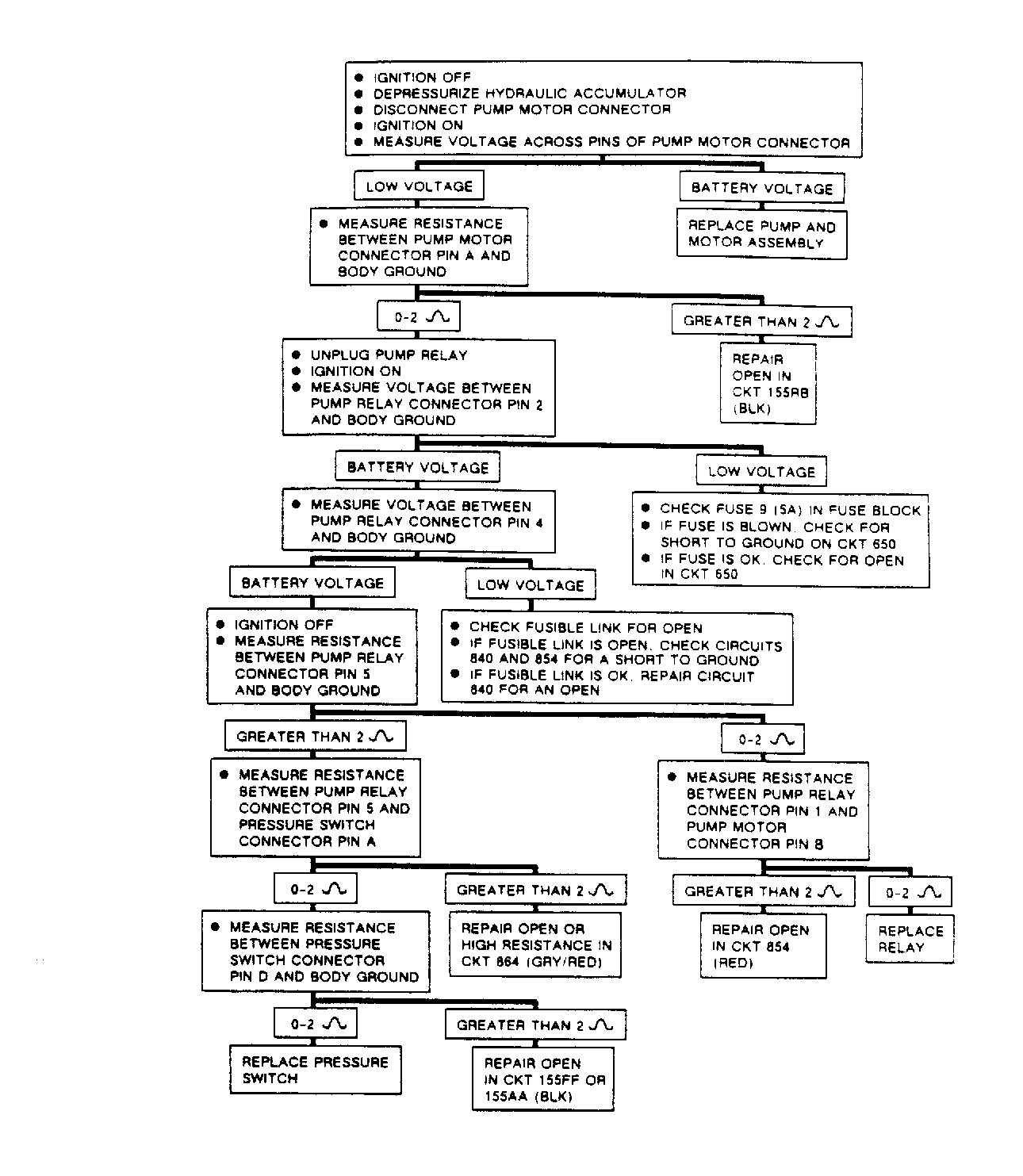

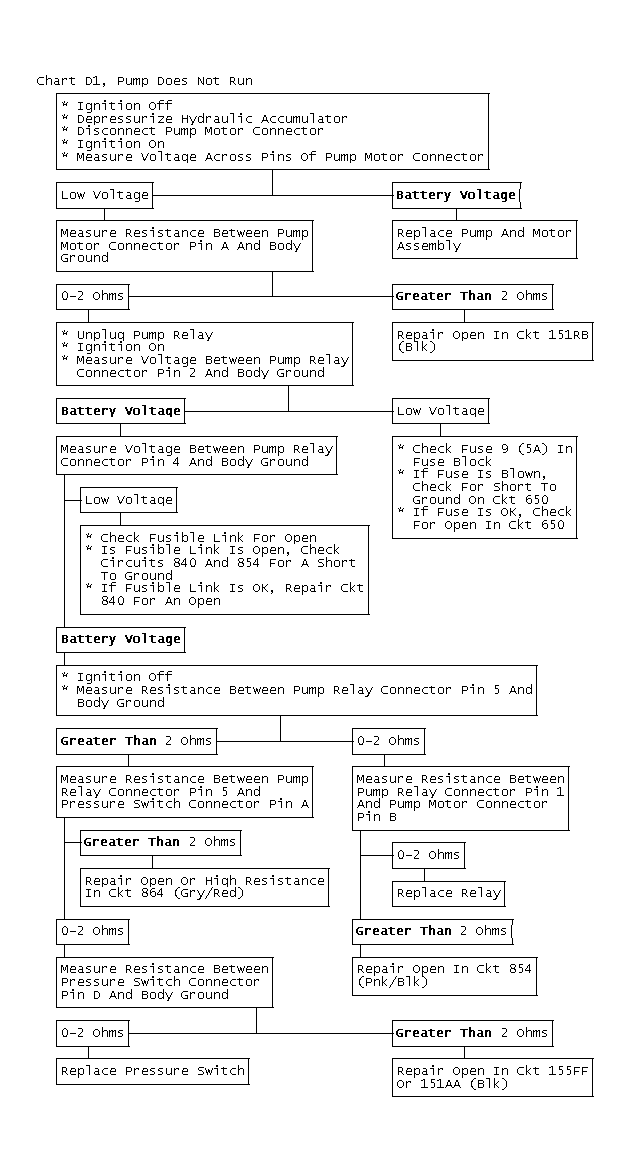

Chart D1, Pump Inoperative
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1990 Pontiac Bonneville, 1990 Oldsmobile Ninety-Eight, 1990 Oldsmobile Eighty-Eight, 1990 Cadillac Fleetwood, and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
- Pump/motor assembly is designed to provide hydraulic accumulator with specified pressure. Pump/motor is controlled by pressure switch. Pressure switch closes, which activates pump/motor. This circuit grounds relay coil.
- Positive circuit for relay coil comes from 5-amp pump relay fuse. Power for relay comes from a 30-amp fuse, located in engine compartment. When pressure drops to 2030 psi (14,000 kPa), pressure switch circuit closes, grounding relay coil.
- This activates relay allowing pump/motor to operate. When pressure reaches 2610 psi (18,000 kPa), pressure switch circuit opens, deactivating pump/motor. "BRAKE" lamp circuit is powered by 20-amp fuse. Circuit is grounded if parking brake is applied, fluid level is low or pressure is low.
- When low hydraulic accumulator pressure is detected at the pressure switch on the hydraulic unit, the pressure switch closes to provide the pump motor relay a path to ground, causing pump to run.
