Chart A1, Codes 11 & 12 - EBCM Problem

WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1990 Pontiac Bonneville, 1990 Oldsmobile Ninety-Eight, 1990 Oldsmobile Eighty-Eight, 1990 Cadillac Fleetwood, and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.

ABS Codes 11 and 12 indicate a failure in the Electronic Brake Control Module or on a circuit which can affect the functioning of the logic circuits. Most often 11 or 12 indicates EBCM replacement. However, check the EBCM ground circuit before replacing EBCM.

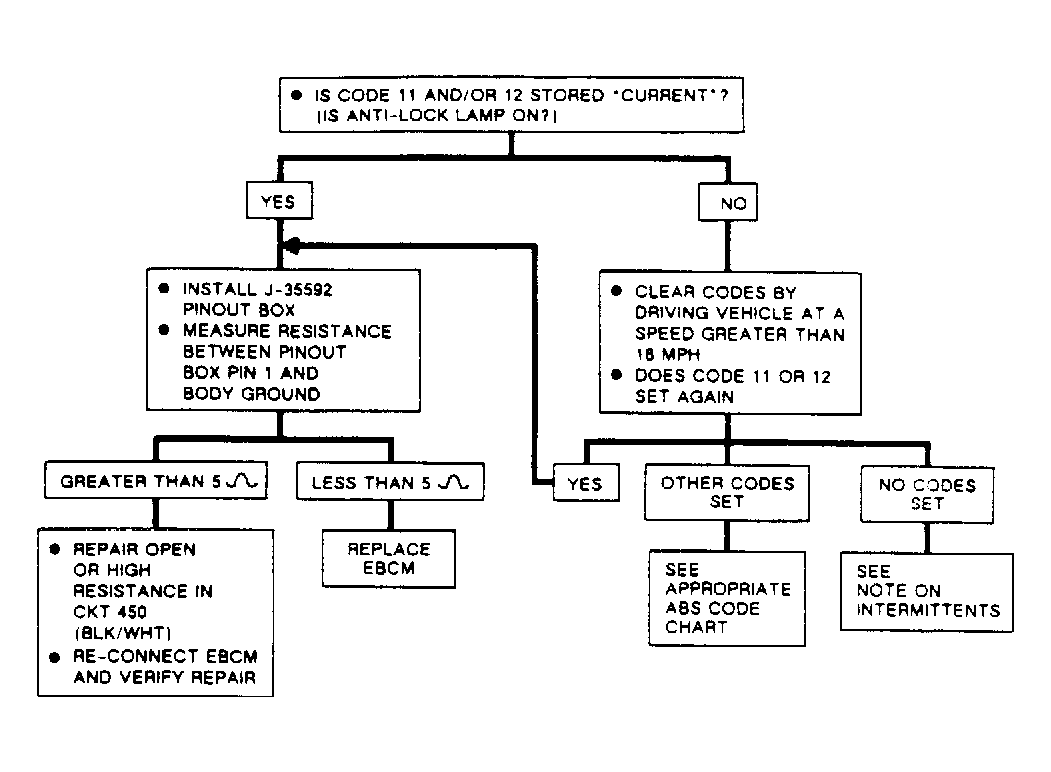

Fig 1: Flow Chart A1, ABS Codes 11 & 12 - EBCM Problem
G109702Courtesy of GENERAL MOTORS CO.
Fig 2: Flow Chart A1, ABS Codes 11 & 12 - EBCM Problem
GB0020605
