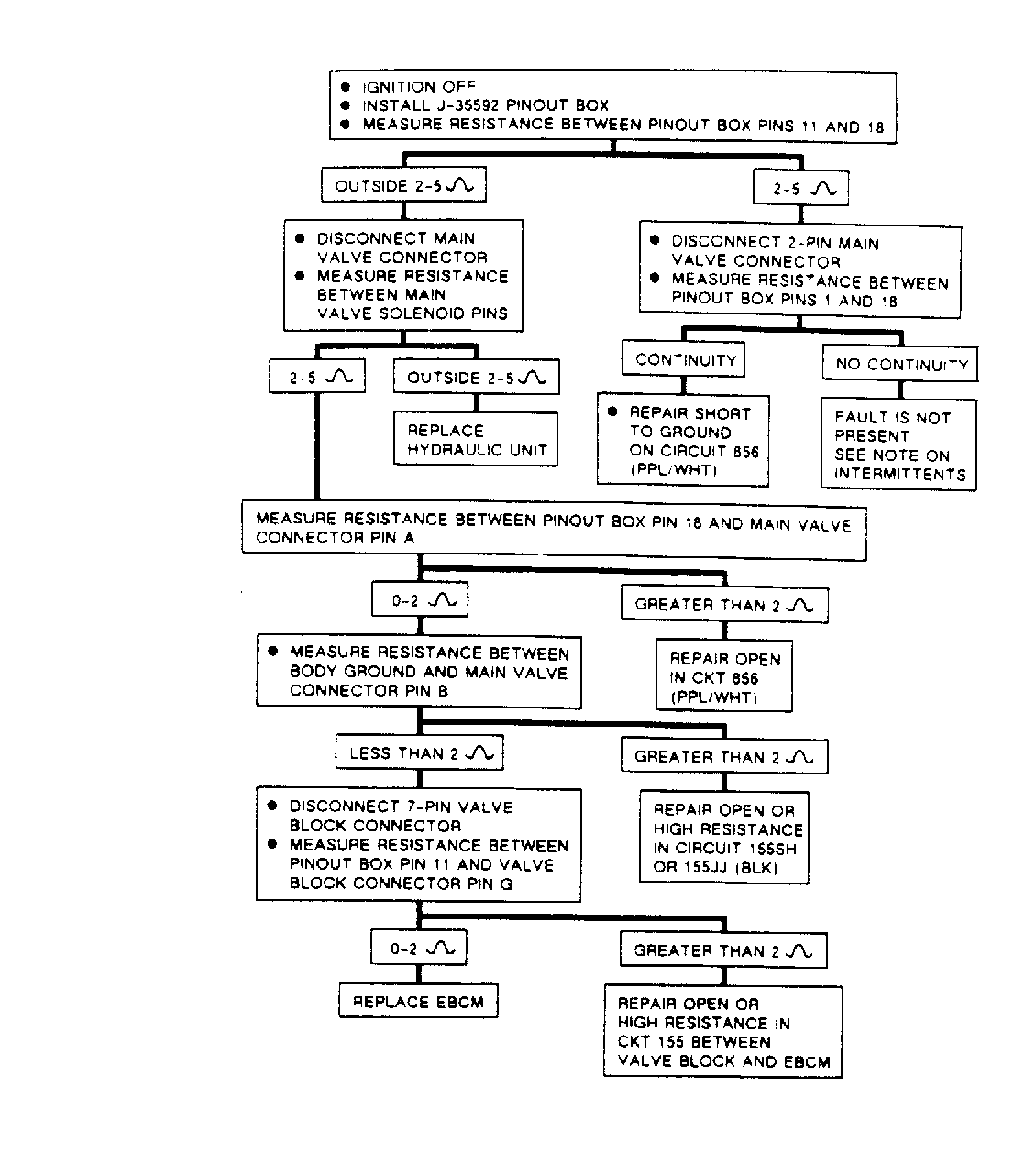

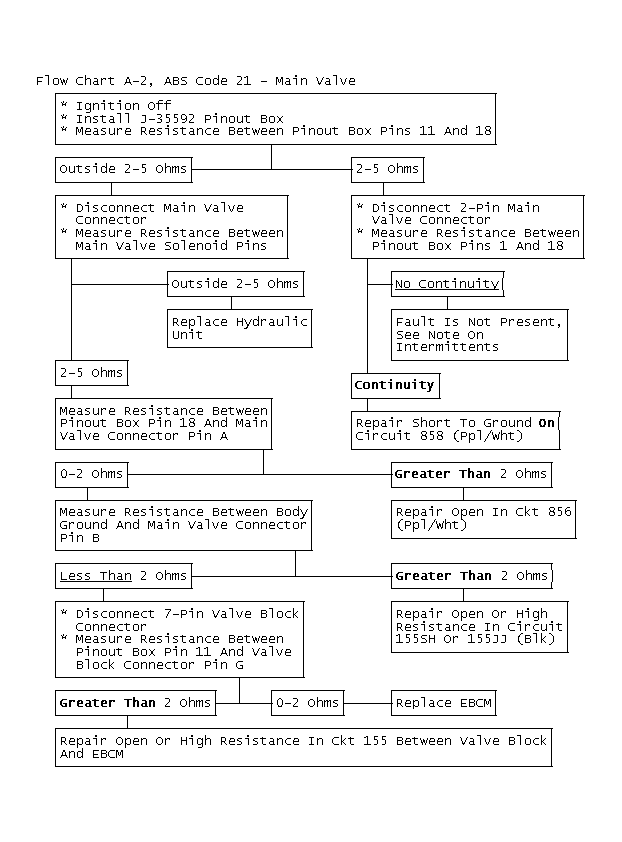

Chart A-2, Code 21 - Main Valve
WARNING: This page does not describe the selected car, but rather 14 other vehicles, including the 1990 Pontiac Bonneville, 1990 Oldsmobile Ninety-Eight, 1990 Oldsmobile Eighty-Eight, 1990 Cadillac Fleetwood, and 1990 Cadillac DeVille. However, it is still accessible from the selected car via links, so may be relevant.
- ABS Main Valve is an internal solenoid valve in the hydraulic unit. Controlled by the EBCM, it modulates hydraulic pressure to front brakes. Power is supplied from EBCM pin No. 18 through circuit 856. Valve grounds through circuit 155.
- Any abnormal electrical condition in Main Valve circuit will cause Code 21 to set. Anti-lock function will be disabled and "ANTI-LOCK" lamp will turn on.
- Conditions that will cause Code 21 to set include: Short or open main valve solenoid, circuit 856 shorted or open, open in circuit No. 155SH or open in circuit No. 155 between valve block and EBCM (disconnecting ABS valve block will cause Code 21 to set).
