Rear Vacuum Break Adjustment

Fig. 10 Carburetor angle gauge installation:

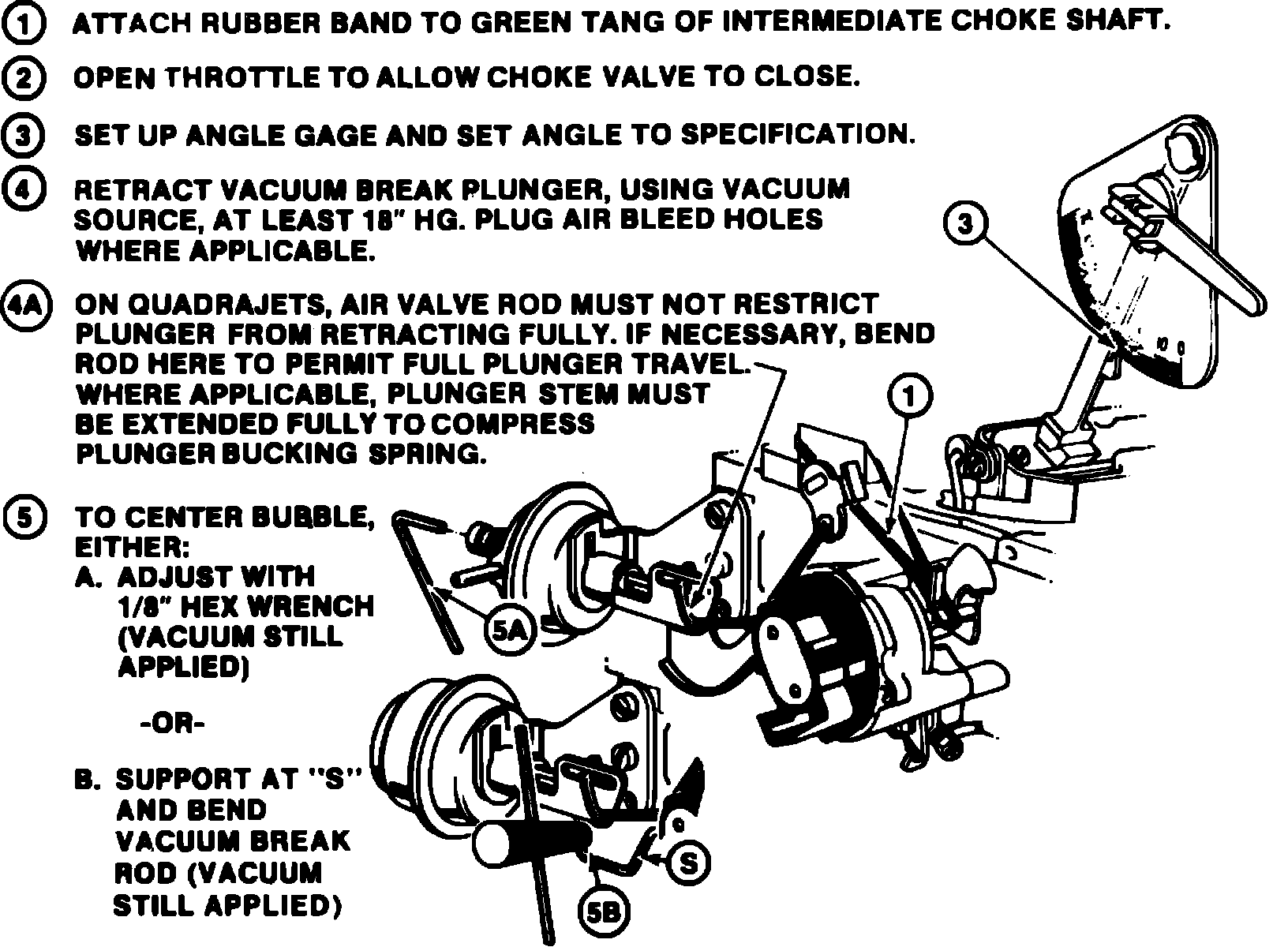

Fig. 14 Rear vacuum break adjustment:

Rear Unit

Install carburetor angle gauge tool No. J-26701 or BT-7704 as shown in Fig. 10.
With gauge installed, adjust vacuum break as outlined in Fig. 14.
