Front Vacuum Break Adjustment

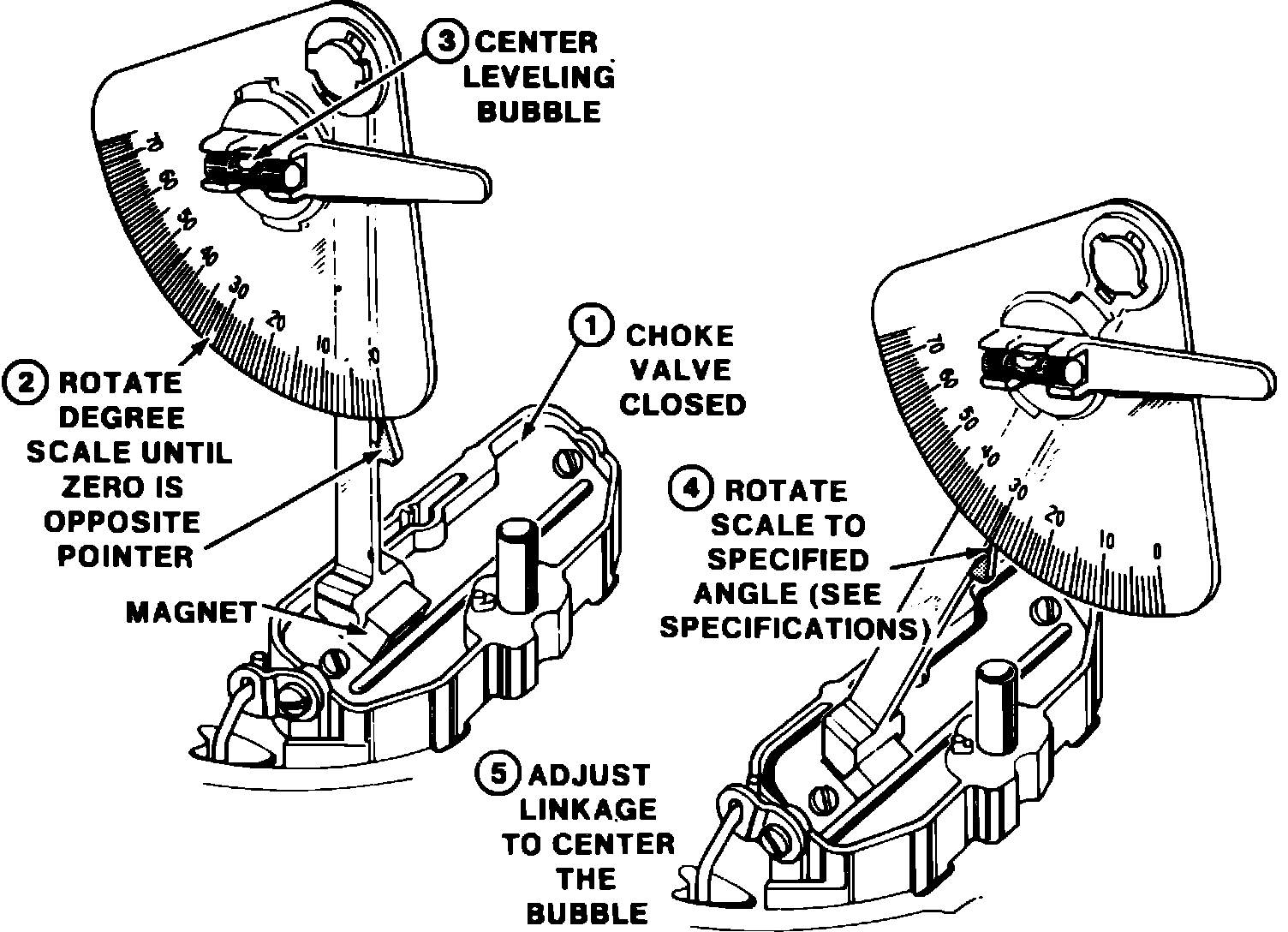

Fig. 10 Carburetor angle gauge installation:

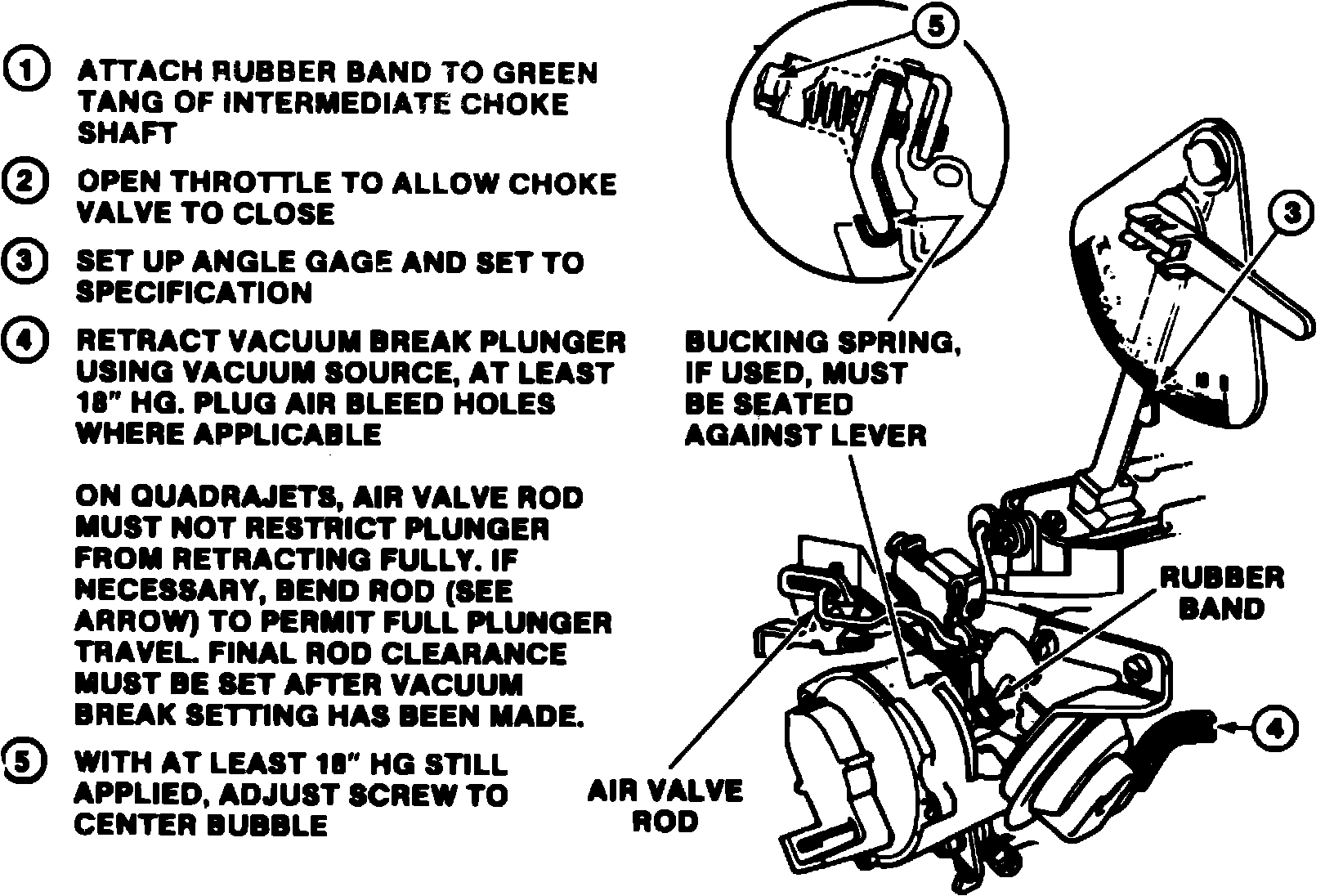

Fig. 13 Front vacuum break adjustment:

Front Unit
Install carburetor angle gauge tool No. J-26701 or BT-7704 as shown in Fig. 10.
With gauge installed, adjust vacuum break as outlined in Fig. 13,
