Gauges & Speedometer (GT Cluster)

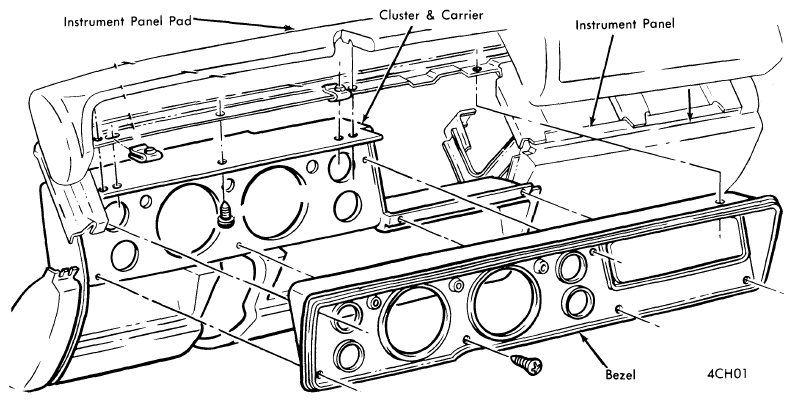

All instruments are removed in the same way. Disconnect battery ground cable. Remove clock stem knob, cluster bezel and instrument panel pad. Remove six screws retaining light shield and lift shield straight out. Remove appropriate gauge retaining screws, pull gauge out, and disconnect electrical lead to gauge.
