Instrument Panel & Cluster

Remove six attaching screws which attach instrument panel and remove panel. Remove cluster by disconnecting wiring and speedometer cable, removing the five attaching screws from underneath instrument panel, and the two screws on top, which are visible when instrument panel is removed.

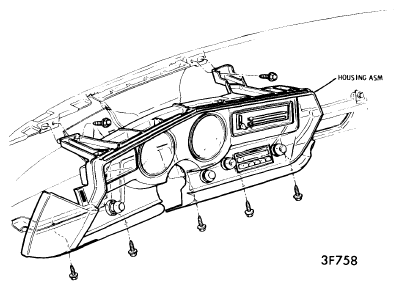

Fig 1: Century, Regal Instrument Panel Removal
G09328933Courtesy of GENERAL MOTORS COMPANY
