Left Trim Panel

Remove headlight knob by pulling out to last detent and depressing spring-loaded latch button on switch, while pulling knob and rod assembly out of switch. Remove switch and escutcheon. Remove trim panel by prying at corner of panel with a screwdriver. Disconnect seelight wires and remove from panel.

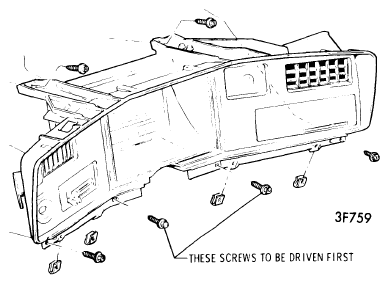

Fig 1: All Other Series Instrument Panel Removal
G09328934Courtesy of GENERAL MOTORS COMPANY
