Remove Cover Housing
CAUTION:
Materials harmful to health
.
Contact with fluids harmful to health!
Contact with fluids harmful to health!
- Note and follow safety instructions on containers.
- Conduct all work in appropriate personal protective equipment only.
NOTE:
TECHNICAL INFORMATION
After every disassembly and prior to every installation: Always clean connections and covers of lines transporting AdBlue thoroughly with water.
Close connections and AdBlue carrying lines.
After every disassembly and prior to every installation: Always clean connections and covers of lines transporting AdBlue thoroughly with water.
Close connections and AdBlue carrying lines.
NOTE:
TECHNICAL INFORMATION
After repair work, clean the working area thoroughly with water.
Clean special tools with water after every use.
After repair work, clean the working area thoroughly with water.
Clean special tools with water after every use.
NOTE:
TECHNICAL INFORMATION
Only use lint-free cloths for cleaning work on the SCR system: WAYPALL cleaning cloths L20 - see BMW Group parts sales.
Only use lint-free cloths for cleaning work on the SCR system: WAYPALL cleaning cloths L20 - see BMW Group parts sales.
Preliminary work
- Refer to SUCTION THE FUEL TANK .
- Refer to REMOVING THE REAR RIGHT WHEEL .
- Refer to Removing rear wheel arch cover
- Refer to REMOVING THE TANK COVER .
- Refer to REMOVE FUEL FILLER PIPE .
- Refer to REMOVE THE FUEL FILLER FLAP .

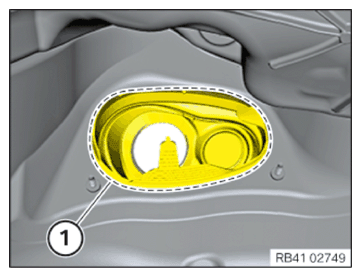

- Release the sealing lip (1) from the wheel well.

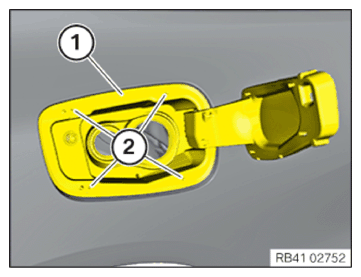

- Pierce the cover housing (1) in the highlighted areas (2) using a small screwdriver.
- Hold cover bowl under tension.
- Insert the screwdriver no more than 10 mm deep.
- Unlock the detents (6)
in a sequence from (1)
to (4)
using a screwdriver (5)
.
- Turn and remove the cover housing from the side panel.
- Unlock plug connection (1) and disconnect.
- Close fuel filler flap.
- Remove the cover housing.
