Removing roller sunblind for the panorama glass roof

Preliminary work

• Refer to REMOVING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
• Refer to REMOVING GLASS SLIDE/TILT SUNROOF PANEL .
• Refer to REMOVING A-PILLAR TRIM PANEL, LEFT AND RIGHT .
• Refer to REMOVING THE SUN VISORS AND COUNTER SUPPORT ON THE LEFT AND RIGHT .
• Refer to REMOVING THE ROOF FUNCTION CENTER (FZD) .
• Refer to REMOVING REAR SEAT BENCH .
• Refer to REMOVING LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to REMOVING RIGHT C-PILLAR TRIM PANEL LEFT AND RIGHT .
• Refer to REMOVING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
• Refer to REMOVING SIDE TRIM PANEL, REAR LEFT AND RIGHT .
• Refer to REMOVING THE B-PILLAR TRIM PANEL AT LEFT AND RIGHT .
• Refer to TRIMMING OF THE 3RD BRAKE LIGHT .
• Refer to LOWERING THE HEADLINING (WITH SLIDING/TILTING SUNROOF) .
• Refer to REMOVING SLIDE/TILT SUNROOF COMPLETELY .
• Refer to REMOVING CROSS MEMBER .

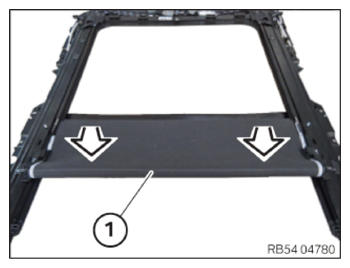

• Shift the roller sunblind (1)  to the rear on both sides, rolling it up a few cm.

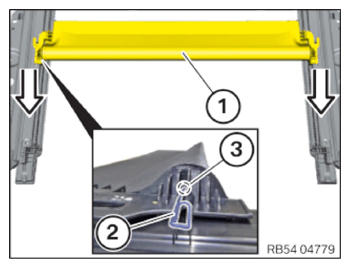

• Roll up the roller sunblind (1)  until it can be locked using a suitable tool (2)  (e.g. paperclip) above the mounting jig (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

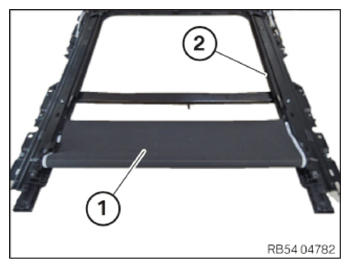

• Fully open the roller sunblind manually (1)  until you feel a slight resistance.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

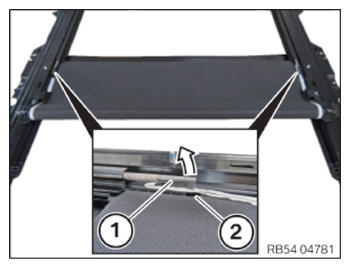

• Feed up the adjuster (1)  out of the slider of the roller sunblind (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Remove the roller sunblind (1)  out of the slide/tilt sunroof frame (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
