41 35 600 Replace One Holder For Front Side Panel (Side Panel Detached) (M4 2021-2023)
>>
Installing The Front Holder
Installing The Front Holder

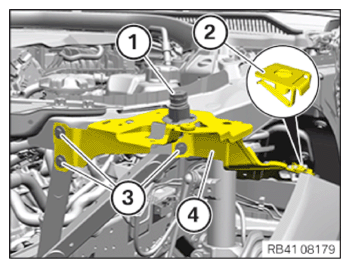

Position holder (4) and tighten the screws (3).
TIGHTENING TORQUE SPECIFICATIONS
Side panel holder to body
M6 screw
tightening torque
8 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
Attach the adjustment plate (1) and sheet metal nuts (2) on the holder (4).

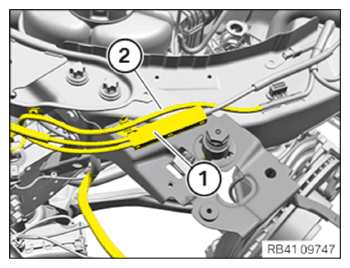

Clip the Bowden cable (1) and the wiring harness (2) into the holder.
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
