Preparing New Part

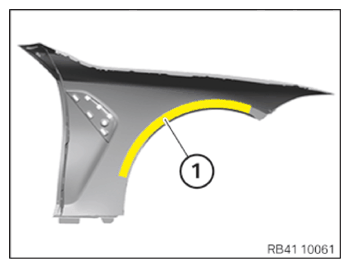

Coat the side panel before painting in this area (1) using sealant D1.
CONSUMABLE SPECIFICATION

Sealant D1 (seam sealing) 310 ml 83422409985
Paint side panel.

Courtesy of BMW OF NORTH AMERICA, INC.

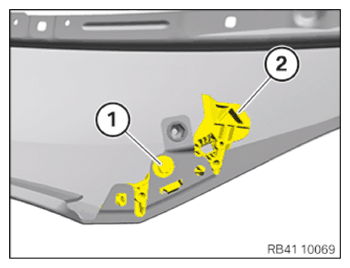

Release screw (1) and remove guide (2) from the side panel to be replaced.
Check the guide (2) for damage; replace it if necessary.

Attach the guide (2) to the new part and tighten the screw (1).

TIGHTENING TORQUE SPECIFICATIONS

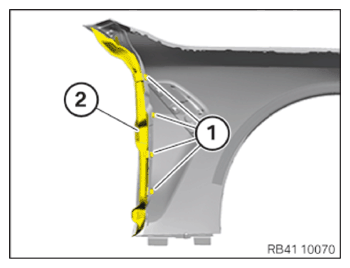

Release the seal (1) at the detents (2) and remount it on the new part.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

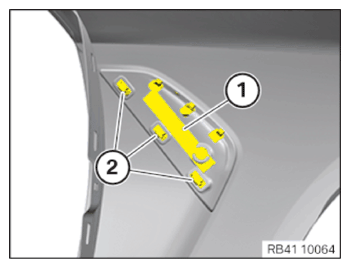

Release the trim (1) at the clamps (2) and remove from the side panel to be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

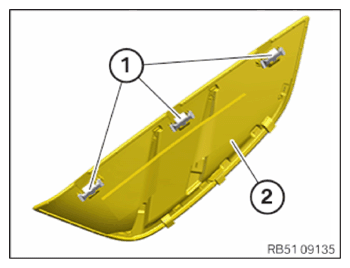

Check the clamps (1) and mounts for the clamps.
Replace broken or missing clips (1).

If the mounts are faulty, renew the trim (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the trim (1) to the new side panel and snap into the clamps (2).
