Loosening the air duct for the coolant radiator on the support for the bumper cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The steps shown on one side must be performed on both sides.

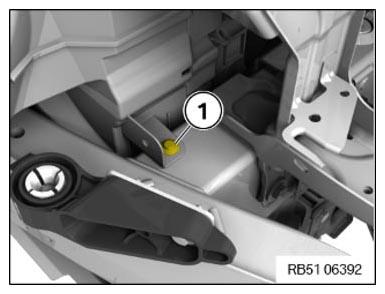

Release expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

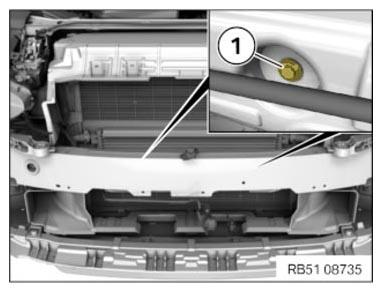

Release expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.
