Install the cover of the steering assembly on the right
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW M240i xDrive, 2023 BMW M240i, 2023 BMW 230i xDrive, 2023 BMW 230i, and 2022 BMW M240i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Install the cover of the steering assembly
NOTE:
TECHNICAL INFORMATION
When the screws are tightened, the cover can twist and cause scuff marks on the anti-roll bar (risk of corrosion).
Brace the cover while the screws are being tightened. Then check the position of the cover.
When the screws are tightened, the cover can twist and cause scuff marks on the anti-roll bar (risk of corrosion).
Brace the cover while the screws are being tightened. Then check the position of the cover.

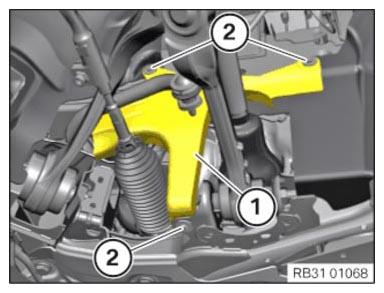

- Position the cover (1).
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Cover, steering unit | ||
| Screw | Tightening torque | 3 Nm |
