Installing the convertible top wiring harness

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

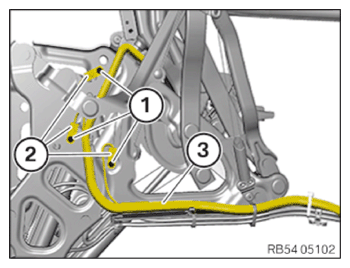

Position the convertible top wiring harness (3) on the existing holders and clip it in.
Position Hall effect sensors (2) .
Secure expanding rivet (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
Slightly open the convertible top to enable accessibility.
Lightly lift the holder (4) and feed in the convertible top wiring harness (5) and position it.
Tighten the screws in area (3) from the rear.

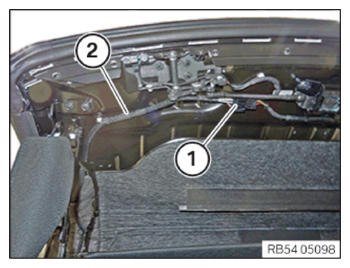

Attach the convertible top wiring harness (1) to the Velcro brackets (2) .

Courtesy of BMW OF NORTH AMERICA, INC.
Connect plug connection (1) and lock.
Clip in wiring harness (2) on the clips.

Courtesy of BMW OF NORTH AMERICA, INC.

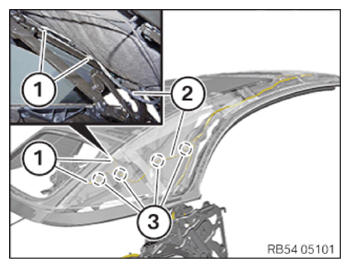

Feed in the convertible top wiring harness (2) at the cloth tabs (3) .
Connect the plug connections (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the cable ties (1) .
Parts: Cable tie

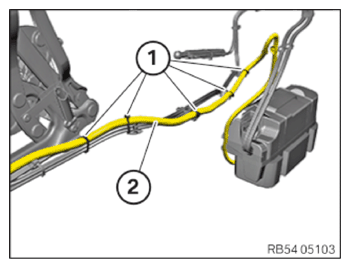

Position the convertible top wiring harness (2) on the holders and attach with the cable ties (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING CONVERTIBLE TOP BOW, FRONT .
Refer to INSTALLING COMPLETE CONVERTIBLE TOP .
Refer to INSTALLING THE CONVERTIBLE TOP COMPARTMENT .
Refer to INSTALLING THE CONVERTIBLE TOP COMPARTMENT LID .
Refer to INSTALLING THE SUPPORT FOR THE REAR INNER WINDOW RECESS FINISHER COVER ON THE LEFT AND RIGHT .
Refer to ADJUSTING THE REAR WINDOW SHAFT DIMENSION .
Refer to INSTALLING THE REAR INNER WINDOW RECESS FINISHER STRIP ON THE LEFT AND RIGHT .
Refer to INSTALLING LEFT AND RIGHT REAR SIDE TRIM PANEL .
Refer to INSTALLING THE INNER DOOR SILL COVER STRIP ON THE LEFT AND RIGHT .
Refer to INSTALLING THE COVER FOR CROSS MEMBER AT THE TOP .
Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
Refer to REMOVING REAR SEAT BACKREST .
Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
Refer to INSTALLING THE REAR SEAT . b
Refer to INSTALLING THE WINDOW CHANNEL STRIP AT REAR OUTER LEFT AND RIGHT .
Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON RIGHT .
Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
Refer to INSTALLING LOADING EDGE TRIM .
Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
Refer to ADJUSTING THE REAR SIDE WINDOW .
Refer to ADJUSTING DOOR WINDOW GLASS .
Refer to DELETING FAULT MEMORY .
