Remove the soft top mechanism
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .
- Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to REMOVING THE CONVERTIBLE TOP COMPARTMENT LID .
NOTE:
Description is for left component only. Procedure on the right side is identical.

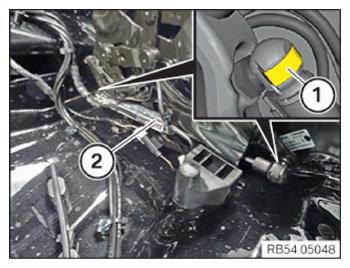

- Slightly lift the retaining clip (1) and unclip the hydraulic cylinder (2).

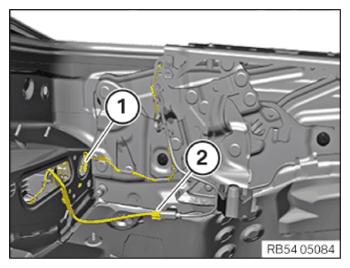

- Feed out the cable linkage for the emergency unlocking (1) from the cargo area.
- Unlock plug connection (2) and disconnect.

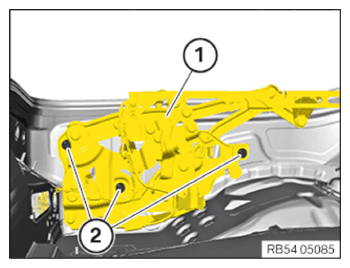

- Mark the position of the convertible top compartment lid mechanism (1) on the bodywork.
- Release the screws (2) and remove the convertible top compartment lid mechanism (1).
