Installing the convertible top compartment lid mechanism
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.

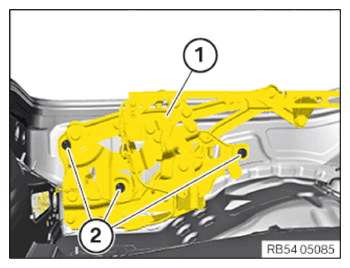

- Position the convertible top compartment lid mechanism (1) on the previously made mark.
- Tighten down screws (2).

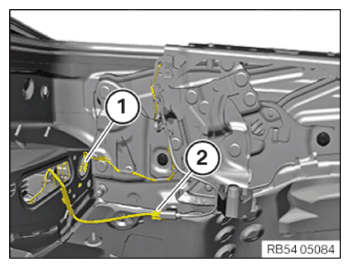

- Feed in the cable linkage for the emergency unlocking (1) in the cargo area.
- Connect connectors (2) and lock.

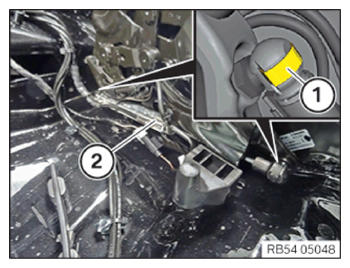

- Check that the retaining clips (1) on the hydraulic cylinder (2) are fitted correctly.
- Clip on the hydraulic cylinder (2) on the associated ball hub.
Follow-up work
- Refer to INSTALLING THE CONVERTIBLE TOP COMPARTMENT LID .
- Refer to INSTALLING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to INSTALLING THE TOP LUGGAGE COMPARTMENT TRIM PANEL .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
