Removing the convertible top latch

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Battery charger connected.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING CONVERTIBLE TOP BOW, FRONT .

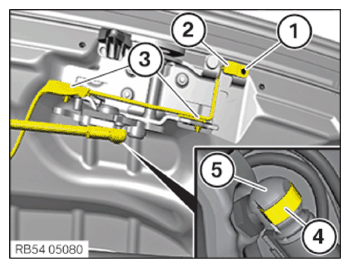

Release the blind rivet (1).
Release the Hall effect sensor (2) at the cable brackets (3) and remove it.
Slightly raise the retaining clip (4) and unclip the ball head (5).

Courtesy of BMW OF NORTH AMERICA, INC.

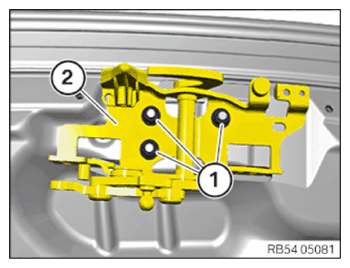

Release nuts (1).
Remove the convertible top latch (2).

Courtesy of BMW OF NORTH AMERICA, INC.
