Installing the convertible top latch

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

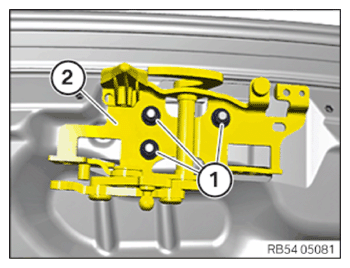

Position the convertible top latch (2).
Turn nuts (1) until hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

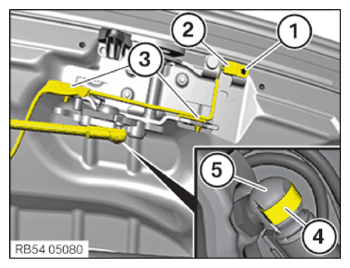

Position the ball head (5) and clip it in.
Make sure that the retaining clip (4) engages correctly.
Position the Hall effect sensor (2) and clip the wiring harness and cable bracket (3) in.
Fasten blind rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

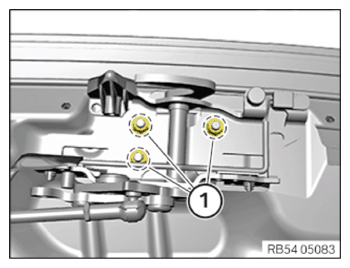

Close soft top completely.
Tighten nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

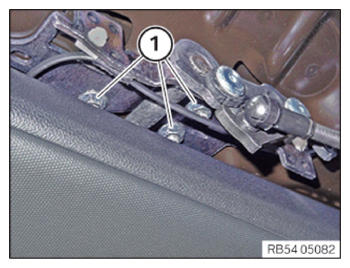

Open soft top.
Tighten the nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING CONVERTIBLE TOP BOW, FRONT .
Refer to ADJUSTING DOOR WINDOW GLASS .
Refer to ADJUSTING THE REAR SIDE WINDOW .
