Removing the headlining rear side

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Battery charger connected.

NOTE: First perform steps completely on the left side. Then perform the identical steps on the right side.

NOTE: Description is for left component only. Procedure on the right side is identical.

CAUTION: Folding up of convertible top through loss of pressure in hydraulic cylinders.
Injury hazard! Injury hazard by trapping!

When carrying out all repair work, secure soft top and soft top compartment lid with a suitable support tool against collapsing. Ensure soft top is supported in the middle.

Courtesy of BMW OF NORTH AMERICA, INC.

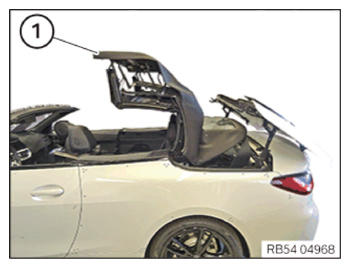

Bring the convertible top (1) in the half opened position.
Secure the convertible top (1) from collapsing by using the support 2 452 010 if necessary.

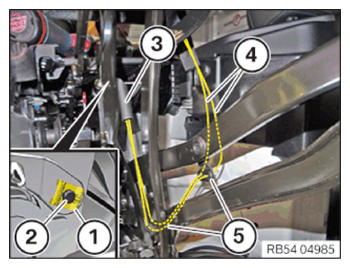

Release the retaining clip (1).
Guide out bolt (2).
Remove the rubber grommet (3).
Guide the tension cable (4) out of the guides (5).

Courtesy of BMW OF NORTH AMERICA, INC.

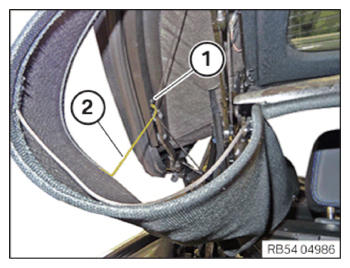

Loosen blind rivet (1).
Guide out the tension cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.

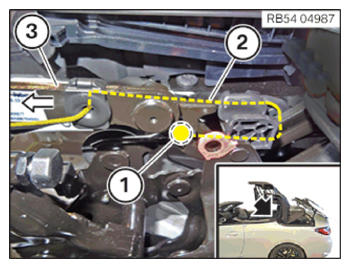

Release the Jetpress plastic rivet (1).
Guide out tension cable (2) from convertible top linkage (3) in the arrow direction.
NOTE: If necessary, slide the linkage aperture flap to the front for better accessibility.

Courtesy of BMW OF NORTH AMERICA, INC.

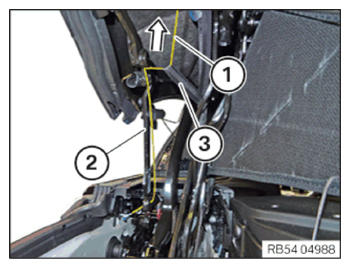

Guide out tension cable (1) further in the arrow direction from the guides on convertible top linkage (2) and retaining strap (3).

Courtesy of BMW OF NORTH AMERICA, INC.

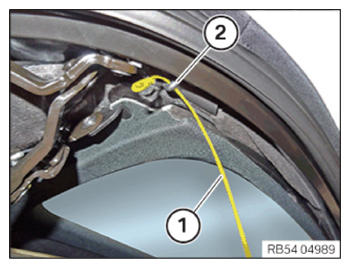

Feed out the tension cable (1) from the retaining tab (2) at the convertible top brace.

Courtesy of BMW OF NORTH AMERICA, INC.

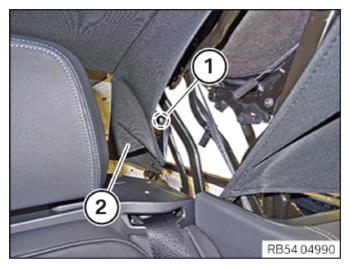

Release screw (1) and remove headlining (2).

Courtesy of BMW OF NORTH AMERICA, INC.

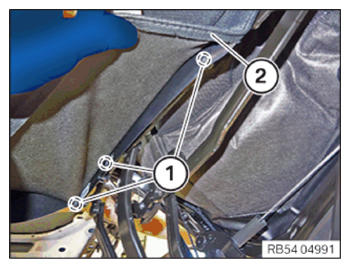

Release screws (1) and remove headlining (2).

Courtesy of BMW OF NORTH AMERICA, INC.
