Removing the emergency unlocking mechanism of the Bowden cable
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
- Refer to REMOVING THE LOADING EDGE TRIM .
- Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .
- Refer to REMOVING LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .
- Refer to REMOVING THE CONVERTIBLE TOP COMPARTMENT LID .
NOTE:

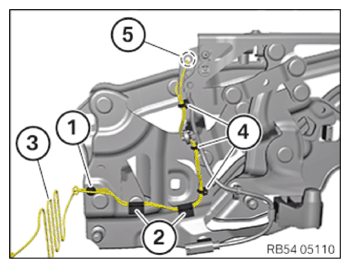

For a better overview the removed condition is shown here.
- Close the convertible top compartment lid mechanism manually.
- Release blind rivet (1).
- Detach the adhesive tape (2).
- Thread the Bowden cable (3) out of the holders (4) and out of the convertible top compartment lid mechanism in the area (5).
