Installing the hydraulic cylinder for the convertible top compartment lid

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Protect the working area from escaping hydraulic fluid.

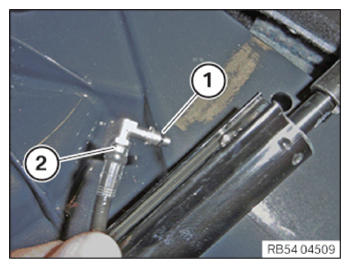

Check the seal (1) of the hydraulic line (2) for correct fit and damage, replace it if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

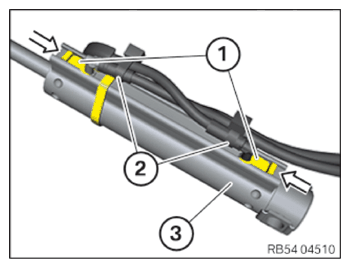

Position the hydraulic lines (2) on the hydraulic cylinder (3).
Push the lock plates (1) on from outside in the arrow direction and lock them.

Courtesy of BMW OF NORTH AMERICA, INC.

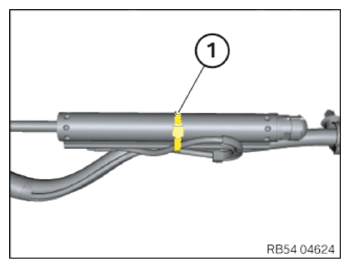

Install (1) cable tie.
Make sure that the fastener of the cable tie (1) is positioned so that a collision with the other parts of the convertible top is prevented.

Courtesy of BMW OF NORTH AMERICA, INC.

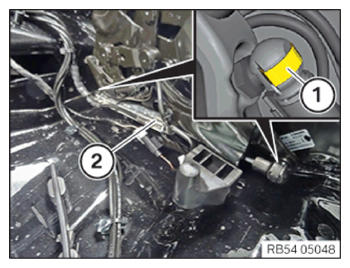

Check that the retaining clips (1) on the hydraulic cylinder (2) are fitted correctly.
Clip on the hydraulic cylinder (2) on the associated ball hub.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CHECKING THE HYDRAULIC FLUID LEVEL OF THE HYDRAULIC UNIT OF THE CONVERTIBLE TOP DRIVE .
