Remove hydraulic unit

Preliminary work

• Refer to REMOVING LUGGAGE COMPARTMENT FLOOR COVERING .
• Refer to REMOVING THE LOADING EDGE TRIM .
• Refer to REMOVING THE UPPER LUGGAGE COMPARTMENT TRIM PANELS .
• Refer to REMOVING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL .

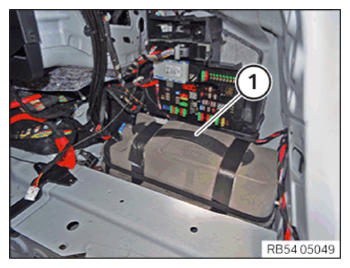

• Guide out hydraulic unit (1) and place it in the cargo area.

  Courtesy of BMW OF NORTH AMERICA, INC.

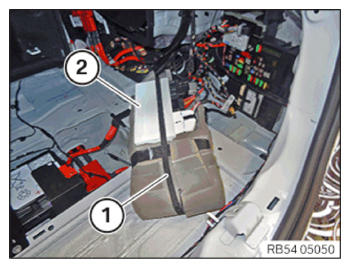

• Remove retaining strap (1).
• Remove the control unit (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

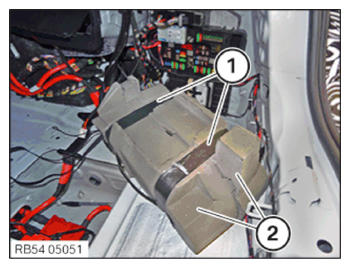

• Release the adhesive tapes (1) and remove the coating (2) from the foam material.

  Courtesy of BMW OF NORTH AMERICA, INC.

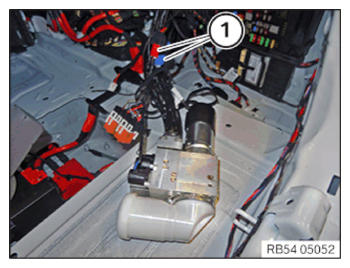

• Unlock and disconnect the existing plug connections (1).
  NOTE: Briefly open the lid of the hydraulic fluid reservoir to release any pressure present in the system. This prevents hydraulic fluid from escaping in the next work step.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Risk of mixing up To ensure correct assignment, the hydraulic lines and respective connections must be marked with suitable materials in case of removal. If the hydraulic lines are connected incorrectly, the convertible top can be damaged!
• Protect the working area from escaping hydraulic fluid.

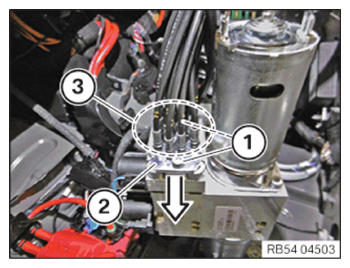

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Shift the locking plate (2) in the arrow direction.
• Feed out the hydraulic lines (3).
