Installing the drivetrain for the glass slide/tilt roof panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The glass slide/tilt roof panel is closed.

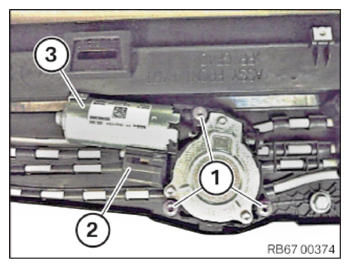

- Guide in drivetrain (3) for the glass slide/tilt roof panel and position it correctly.
- Connect and lock all connectors (2) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Drive motor for panorama glass roof to body | ||
| Screw | tightening torque | 5.5 Nm |
