Installing the seal for the glass slide/tilt roof panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

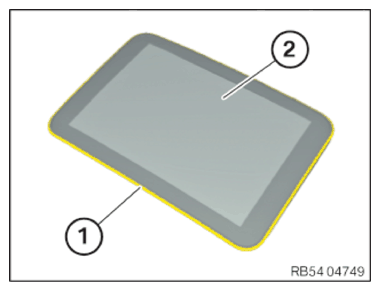

- Position the seal from the glass slide/tilt roof panel (1) on the groove on the glass slide/tilt roof panel (2) and press in.
Ensure that seal (1) rests fully all around the glass slide/tilt roof panel.
NOTE:
Coat the seal with a suitable lubricant.
CONSUMABLE SPECIFICATION
| Lubricant M | 30 ml | 83 19 2458653 |
Follow-up work
- Refer to INSTALLING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to CHECKING THE SETTING OF THE GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to ADJUSTING GLASS SLIDE/TILT SUNROOF PANEL .
- Refer to INITIALIZING THE GLASS SLIDE/TILT SUNROOF .
- Refer to INSTALLING THE BELLOWS FOR THE GLASS SLIDE/TILT SUNROOF .
