Removing the hands-free microphone left and right

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Removing the hands-free microphone

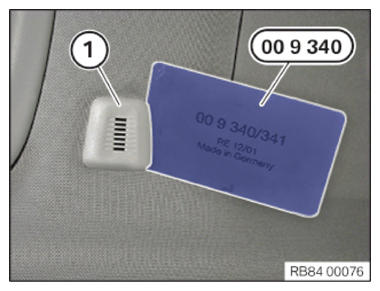

Lever out the hands-free microphone (1) with the special tool 0 493 687 (00 9 340) .

Courtesy of BMW OF NORTH AMERICA, INC.

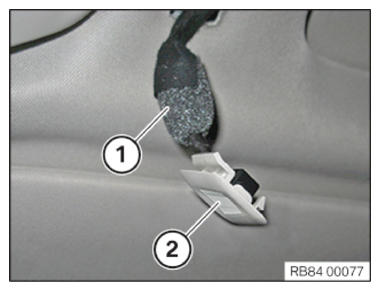

Open the insulation (1).
Disconnect plug connection.
Remove the hands-free microphone (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Description is for left component only. Procedure on the right side is identical.
