Replacing the left and right hands-free microphone

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Replacing the hands-free microphone

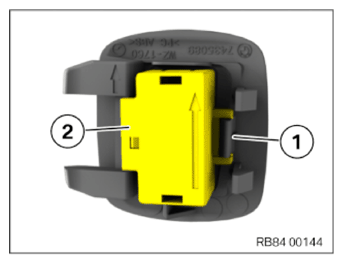

Release the snap-in lugs (1) and remove the hands-free microphone (2).

Courtesy of BMW OF NORTH AMERICA, INC.

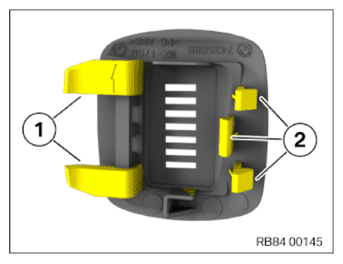

Check the guides (1) and retaining lugs (2) on the trim of the hands-free microphone for damage and replace if necessary.
Replace the hands-free microphone.
Parts: Hands-free microphone

Courtesy of BMW OF NORTH AMERICA, INC.
Install the hands-free microphone (2) in the trim of the hands-free microphone and lock in place with the retaining lugs (1).

Courtesy of BMW OF NORTH AMERICA, INC.
