Removing the USB port from the storage compartment in the center console
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Lid of front center armrest is open.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.
Preliminary work

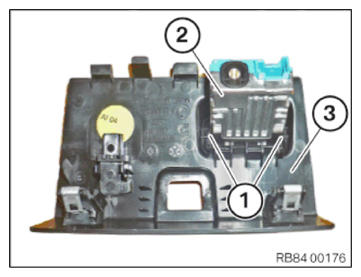

- Loosen the detents (1).
- Remove the USB port (2) from the trim (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
