Remove control unit
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to DEACTIVATING THE 48 V ELECTRICAL SYSTEM .
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .

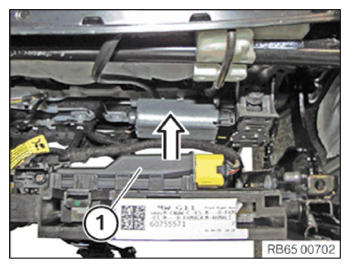

- Unclip the control unit (1) in the direction of the arrow.

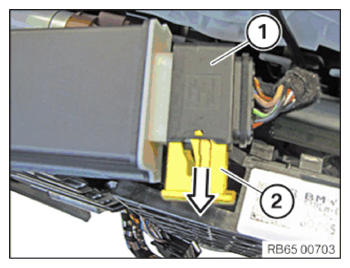

- Open the lock (2) the direction of the arrow.
- Disconnect plug connection (1).
- Remove the control unit.
