Installing the instrument cluster
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Electrostatic discharge.
Damage to or destruction of electrical components.
Electrostatic discharge.
Damage to or destruction of electrical components.
- Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
- Read and comply with user information on using the associated special tool 12 7 060.
- Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
- Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
- For additional information see: 61 35... NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
NOTE:
RISK OF DAMAGE
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
Careless handling of tools and sharp-edged components.
Scratches, surface damage.
- Protect working area.
- Handle tools and components carefully.
NOTE:
RISK OF DAMAGE
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
Damage of high-quality surfaces.
Plastic wedges can damage high-quality surfaces.
- Protect surfaces from damage.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

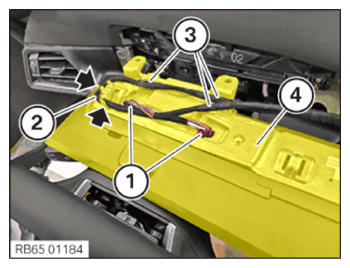

- Feed in the instrument cluster (4) and position it.
- Clip in all cable brackets (3).
- Feed the cable (2) into the holders (arrows).
- Connect all connectors (1) and lock.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Replace clamps (3).
Parts: Clamps

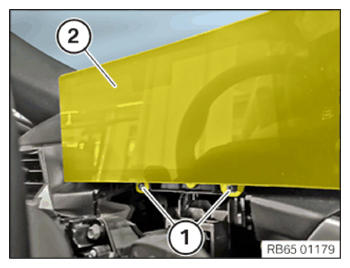

- Feed the instrument cluster (1) with the hook (2) on to the clamps (3).
- Position the instrument cluster (1) correctly.

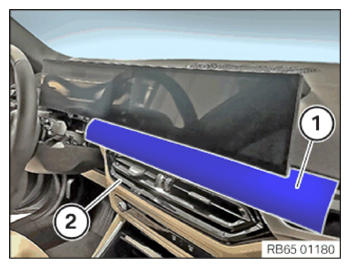

- Remove the plastic adhesive tape (1) from the decorative strip (2).
- Replace screws (1).
Parts: Screws

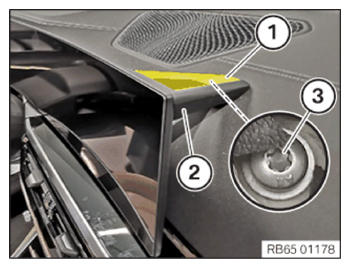

- Tighten screws (1) on the instrument cluster (2).
- Replace the screw (3).
Parts: Screw
- Tighten down screw (3).

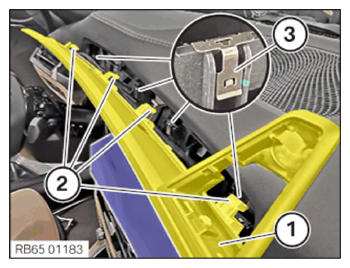

- Clip in the cover (1) at the instrument cluster (2).
Follow-up work
- Refer to INSTALLING THE GAP COVER .
- Refer to FITTING STEERING COLUMN SHROUD UPPER SECTION .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
