Removing the tweeter in the rear side trim panel
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING SEAT-BELT ASSISTANT HAND .
- Refer to REMOVING REAR SEAT BENCH .
- Refer to REMOVING ARMREST SIDE SECTION .
- Refer to REMOVING C-PILLAR TRIM PANEL .
- Refer to REMOVING THE INNER DOOR SILL COVER STRIP .
- Refer to REMOVING REAR SIDE TRIM PANEL .
- Refer to REMOVING THE SOUND INSULATION ON THE SIDE TRIM PANEL .
NOTE:

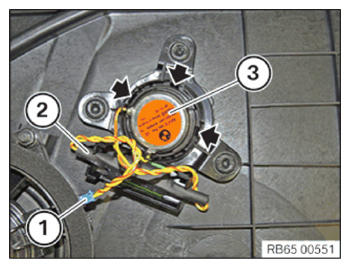

Schematic diagram is for example purposes. Some parts may differ in certain details.
- If necessary, slide the acoustic fleece slightly to one side.
- Unlock plug connection (1) and disconnect.
- Unclip the resistance (2).
- Unlock the locks (arrowed).
- Remove tweeter (3).
