Installing the loudspeaker on the front door
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

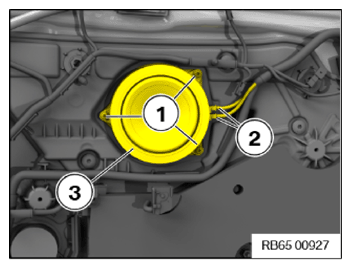

- Connect connectors (2) and lock.
- Position the loudspeaker on the front door (3) and tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Loudspeaker in door to module bracket in door | ||
| Oval-head screw for thermoplastic | Tightening torque | 2 Nm |
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
