Removing Luggage Compartment Floor And Right Side Member

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

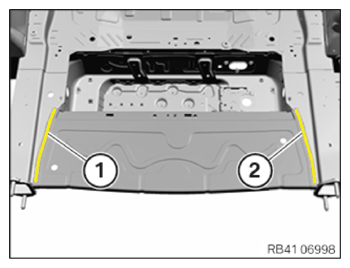

Open welded connections in areas (1) and (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Perform the steps on the left and right side.

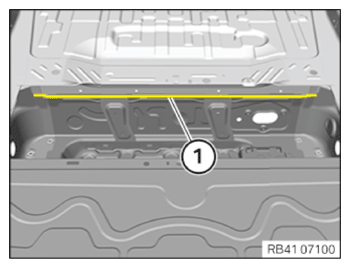

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

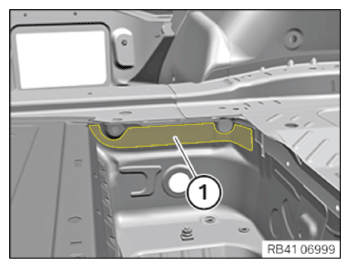

Open welded connections in area (1) and remove the support.

Courtesy of BMW OF NORTH AMERICA, INC.

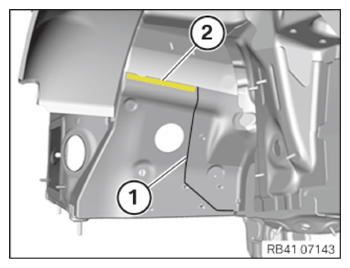

Make the separating cut (1) according to the schematic diagram.
Open welded connections in area (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: To provide a better overview: Shown without side panel.

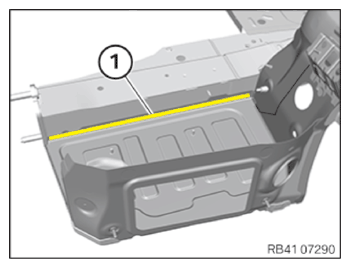

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

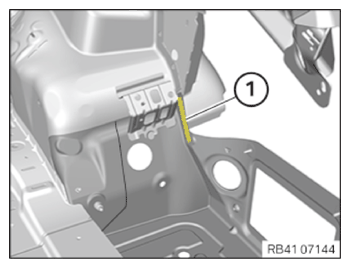

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

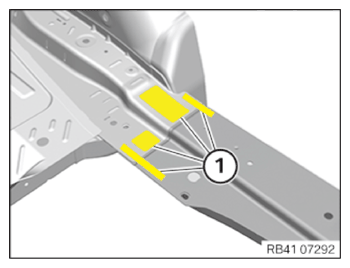

Loosen welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen welded connections in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

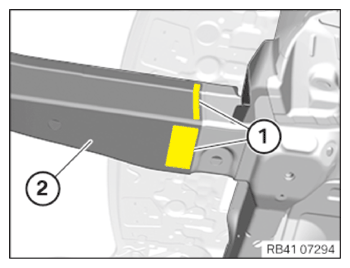

Release the welded connections in areas (1) and remove the side member (2).

Courtesy of BMW OF NORTH AMERICA, INC.
