Supplying The New Parts Required
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Vehicle is fixed on straightening bench.NOTE: TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
- Observe the procedure for repair stage 3.
Preliminary work
Follow-up work

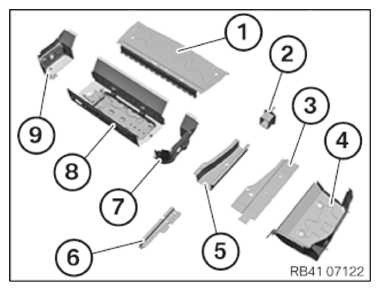

- Prepare the following new parts (see Electronic Parts Catalog [EPC]):
Rear luggage compartment floor (1)
Panel of rear bumper (2)
Side member extension at rear top (3)
Luggage compartment floor, side section (4)
Side member extension at rear bottom (5) reinforce., side member (6)
Luggage compartment well, left (7)
Luggage compartment well (8)
Luggage compartment well, right (9)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Adhesive K5 (50 ml) 1 Blind rivet N3 20 Coarse thread bolt 25 Threaded weld bolt 5 EMC screw 3 Cleaning agent R1 1 Cleaning agent R2 1 Sealing compound D1 1 Cavity protection wax remover
