Install the tail light on the trunk lid

Check

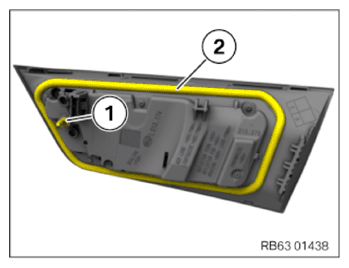

• Check the threaded bolt (1) and the seal (2) on the tail light on the trunk lid for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The threaded bolt or seal is damaged.

  Measure

  • Replace the tail light on the trunk lid.

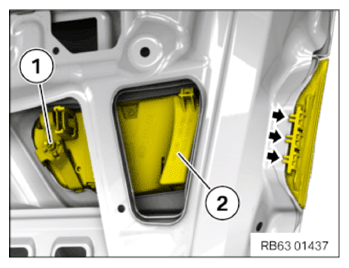

• Position the tail light on the trunk lid (2) on the guides (arrows).
• Position the clamping claw and tighten the nut (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

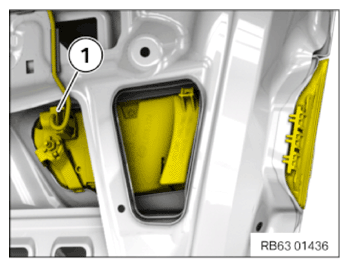

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

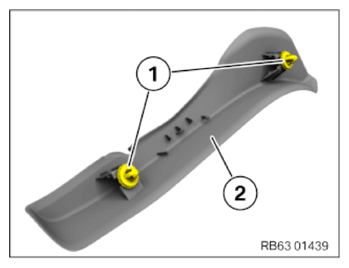

• Check the clips (1) of the cover (2) for damage, replace if applicable.

  Courtesy of BMW OF NORTH AMERICA, INC.

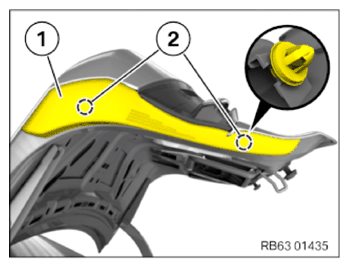

• Position the cover (1) and clip it in with the clips.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
