Removing the tail light on the right trunk lid
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING TAILGATE TRIM PANEL .
NOTE:
Description is for left component only. Procedure on the right side is identical.
Removing the tail light on the trunk lid
NOTE:
TECHNICAL INFORMATION
Observe the note on unlocking and disconnecting plug connections.
For additional information see: 6113... UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS
Observe the note on unlocking and disconnecting plug connections.
For additional information see: 6113... UNLOCKING AND DISCONNECTING DIFFERENT PLUG CONNECTIONS

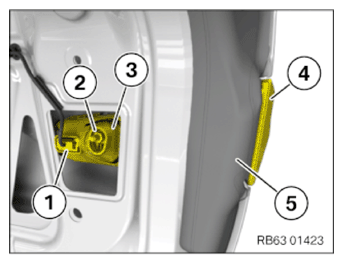

- Unlock plug connection (1) and disconnect.
- Release the nuts (2) with the clamping claw (3).
- Feed out the tail light (4) from the tailgate and the trim (5) at the sealing lip.

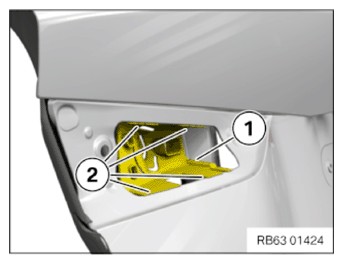

- If necessary, release the convertible top brace (1) at the guides (2) and remove it outwards.
