Install the tail light on the trunk lid

• If necessary, insert convertible top brace (1) into the tailgate from the outside and position it with guides (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

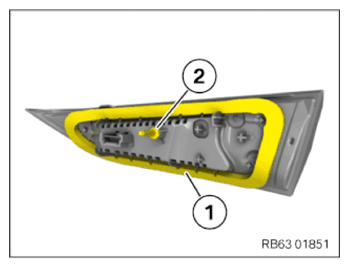

• Check seal (1) and threaded bolt (2) of the tail light for damage.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Seal (1) is damaged.

  Measure

  • Replace gasket.

  Result

  » Threaded bolt (2) is damaged.

  Measure

  • Replace tail light.

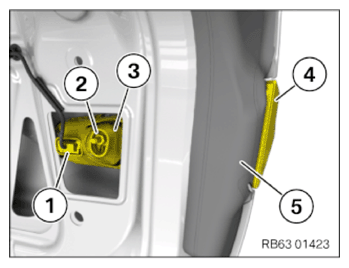

• Insert and position tail light (4) in the tailgate. Guide tail light (4) under the sealing lip of trim (5) and into clamping claw (3).
• Tighten nut (2) with clamping claw (3).
  TIGHTENING TORQUES SPECIFICATION



  Tail light at trunk lid
  Clamping claw	tightening torque	2.6 Nm

• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
