Remove washer fluid reservoir
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly.
Danger! Immobilization period-threatening injuries!
Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... RAISE THE VEHICLE USING A VEHICLE LIFT .
Preliminary work
- Refer to REMOVING THE WHEEL .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to REMOVING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER FRONT .

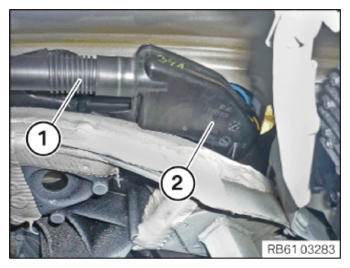

- Detach the filler channel (1) from the fuel filler neck (2).

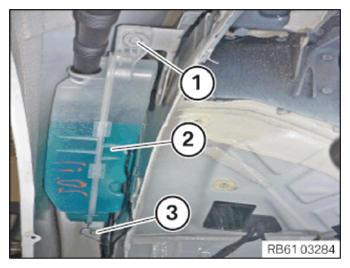

- Loosen screw (1).
- Guide the washer fluid reservoir (2) out of the bracket (3).

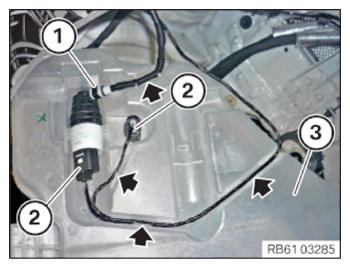

- Unlock hose pipe (1) and disconnect.
- Unclip (arrow) hose pipe (1) from washer fluid reservoir (3).
- Unlock and disconnect connector (2).
- Unclip the cable from the washer fluid reservoir (3) (arrows).
