Installing washer fluid reservoir
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

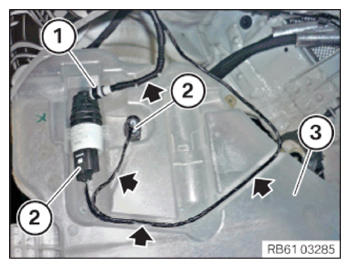

- Connect plug (2).
- Clip the cable into the washer fluid reservoir (3) (arrows).
- Connect the hose pipe (2) and lock it.
- Clip the hose pipe (2) into the washer fluid reservoir (3) (arrow).

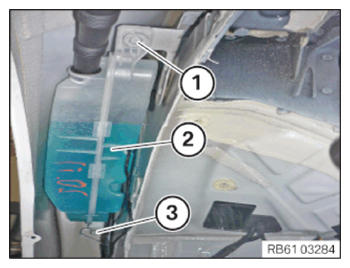

- Position the washer fluid reservoir (2) and feed in towards rear into the holder (3).
- Tighten down screw (1).TIGHTENING TORQUES SPECIFICATION

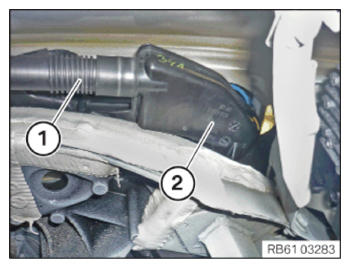

Washer fluid reservoir tightening torque 8 Nm - Connect the filler channel (1) to the fuel filler neck (2).
Follow-up work
- Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER .
- Refer to MOUNTING THE WHEEL .
