Installing the left windshield washer jet

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Check

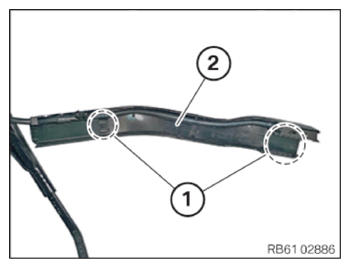

Check the detents (1) at the windshield washer jets (2) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Detents (1) are damaged.

Measure
- Replace the windshield washer jets (2).

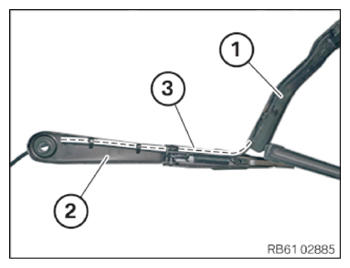

Guide the windshield washer jets (1) with washer fluid hose (3) into the wiper arm (2).

Courtesy of BMW OF NORTH AMERICA, INC.

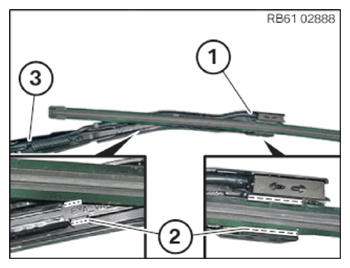

Position and lock the windshield washer jets (1) in place on the wiper arm (3).
The detent (2) must snap in audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

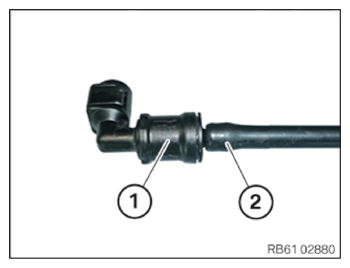

Connect the quick-release coupling (1) with the washer fluid hose (2).

Courtesy of BMW OF NORTH AMERICA, INC.
