Removing wiper arm
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The wiper arm must not tap the windshield or the rear window without a wiper blade. Otherwise the windshield or the rear window could be damaged.
The wiper arm must not tap the windshield or the rear window without a wiper blade. Otherwise the windshield or the rear window could be damaged.
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
RISK OF DAMAGE
Damage to the wiper console.
If the wiper arm is removed without a special tool, the wiper console can break.
Damage to the wiper console.
If the wiper arm is removed without a special tool, the wiper console can break.
- Only remove the wiper arm with the described special tool.
- Do not lever off the wiper arm, as otherwise the wiper console can break at the predetermined breaking point for active pedestrian protection.

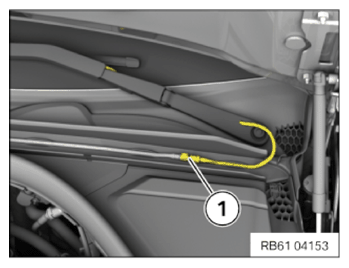

- Disconnect the washer fluid hose (1) at the separation point and feed out from the windshield panel guide.

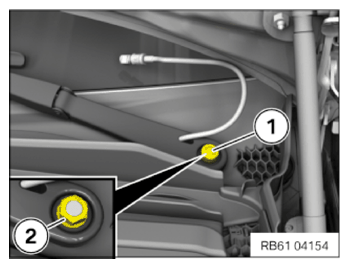

- Remove the protective cap (1).
- Loosen nut (2).

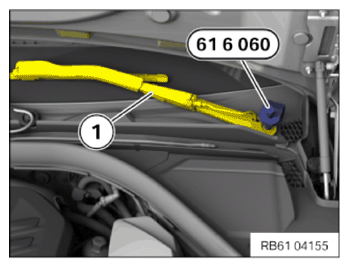

- Detach wiper arm (1) with special tool 0 493 441 (61 6 060) .
