Installing left and right wiper arm
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The window wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate the window wiper system one time, to ensure the window wiper system has the correct installation position.
The window wiper system must be in the zero position.
After installing the cowl cover and before installing the wiper arms:
Operate the window wiper system one time, to ensure the window wiper system has the correct installation position.

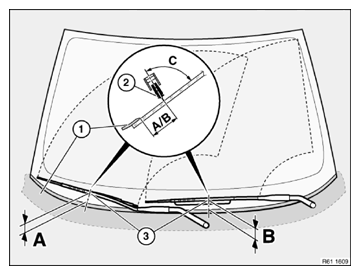

- Connect the wiper arm (3).
- Correctly position the wiper arm (2) in relation to the window edge (1).TECHNICAL DATA SPECIFICATION
Distance from window pane edge to wiper blade Wiper arm right (A) 57.5 ± 5 mm Wiper arm left (B) 63.3 ± 4 mm - Tighten nut (2).TIGHTENING TORQUES SPECIFICATION
Windshield wiper arm Combination hexagon nut tightening torque 35 Nm - Connect the protective cap (1).

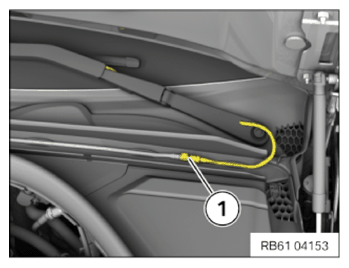

- Feed the washer fluid hose (1) into the guide of the windshield panel and connection at the separation point.
