Remove left and right wiper blade
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
The wiper arm must not tap the windshield or the rear window without a wiper blade. Otherwise the windshield or the rear window could be damaged.
The wiper arm must not tap the windshield or the rear window without a wiper blade. Otherwise the windshield or the rear window could be damaged.
NOTE:
RISK OF DAMAGE
In the event of a customer complaint regarding the cleaning or wiping performance or noise generation (windshield wiper judder, squeaking) by the wiper blades, proceed as follows:
Check whether the customer complaint is caused by contamination (preservation wax in new vehicles, tree resin or other environmental influences) on the windshield. If necessary, thoroughly clean the windshield .
Replace the wiper blades if cleaning the windshield fails to remedy the situation.
In the event of a customer complaint regarding the cleaning or wiping performance or noise generation (windshield wiper judder, squeaking) by the wiper blades, proceed as follows:
Check whether the customer complaint is caused by contamination (preservation wax in new vehicles, tree resin or other environmental influences) on the windshield. If necessary, thoroughly clean the windshield .
Replace the wiper blades if cleaning the windshield fails to remedy the situation.
NOTE:
Description is for left component only. Procedure on the right side is identical.
NOTE:
Description is for left component only. Procedure on the right side is identical.
- Prepare for operation.

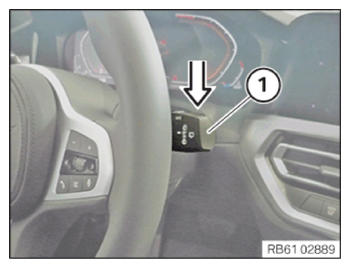

- Keep wiper lever (1) pressed down until the windshield wiper stops in a vertical position.

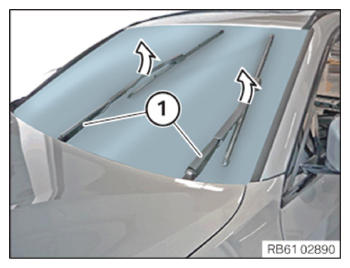

- Fold out wiper arm (1).
- Press lock (1) together.
- Pull out the wiper blade (2) from the wiper arm (3) in the arrow direction.
