Install the sensor line for the contactless trunk opening (top)
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.
- Clip in top sensor line (3) from above.
- Fasten the cable at the clips (2).
- Connect plug (1).

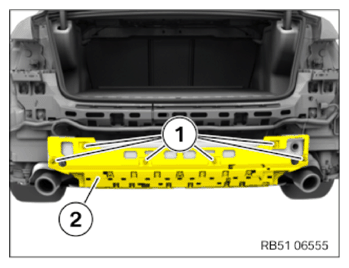

- Position brace for the rear bumper (2) on the support.
- Install the expanding rivet (1).

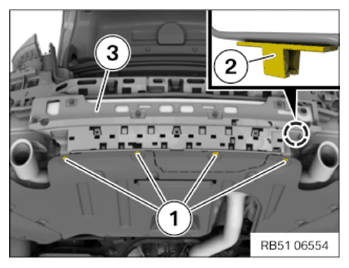

- Clip in the cable clips (2) on the inside of the brace for the rear bumper (3).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Rear bumper cover mount to support for rear bumper | ||
| Hexagon screw for thermoplastic | Tightening torque | 2.6 Nm |
Follow-up work
- Refer to INSTALLING THE TAIL LIGHT ON THE LEFT AND RIGHT SIDE PANELS .
- Refer to INSTALLING THE TRIM IN THE WATER CHANNEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING THE LUGGAGE COMPARTMENT WHEEL ARCH TRIM PANEL ON THE LEFT AND RIGHT .
- Refer to INSTALLING LOADING EDGE TRIM .
- Refer to INSTALLING LUGGAGE COMPARTMENT FLOOR COVERING .
