Removing the storage tray for the near field communication

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

Precondition

Front storage compartment cover is open.

Preliminary work

Refer to REMOVING CUP HOLDER .

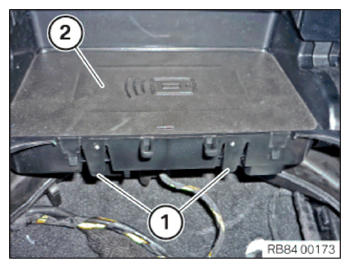

Release the detents (1) and press out the storage tray (2) upwards.

Courtesy of BMW OF NORTH AMERICA, INC.

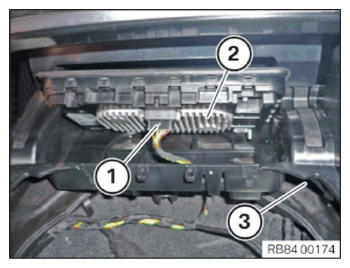

Disconnect the plug connection (1) and remove the storage tray (2) from the center console (3).

Courtesy of BMW OF NORTH AMERICA, INC.
