Installing the storage tray for the near field communication

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

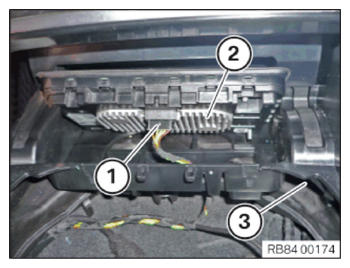

Connect connector (1).
Position storage tray (2) in the center console (3).

Courtesy of BMW OF NORTH AMERICA, INC.

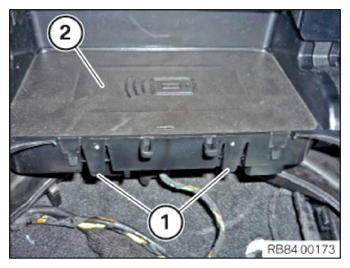

Insert storage tray (2) until detents (1) engage correctly.

G15340416

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CUP HOLDER .
