Installing the left and right fanfare horn

WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Installing the fanfare horn

NOTE: TECHNICAL INFORMATION
Only replace the fanfare horn complete with the holder.

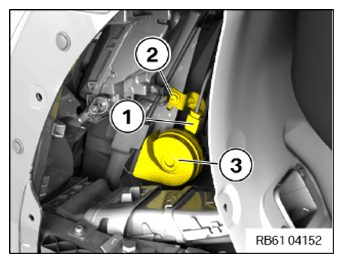

Position the fanfare horn (3) correctly and tighten the screw (2).

TIGHTENING TORQUES SPECIFICATION

Fanfare horn to support for bumper cover
M6x20 screw	Tightening torque	8.8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

Follow-up work

Refer to INSTALLING COVERS AT FRONT BOTTOM ON LEFT AN RIGHT SIDES .
