Installing the switch for the convertible top operation
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

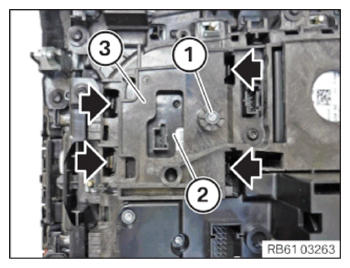

- Position the switch for actuating the convertible top (2) at the gear selector switch (GWS) (3).
The detents (arrows) must engage audibly.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Switch for actuating the convertible top on gear selector | ||
| Screw | tightening torque | 1.8 Nm |
Follow-up work
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ENCODING/PROGRAMING CONTROL UNIT(S) .
