Installing the switch for switching off the front passenger airbag
WARNING: This page is about a different car, the 2025 BMW M4, 2024 BMW M4, 2023 BMW M4, 2022 BMW M4, and 2021 BMW M4. However, it is still accessible from the selected car via links, so may be relevant.

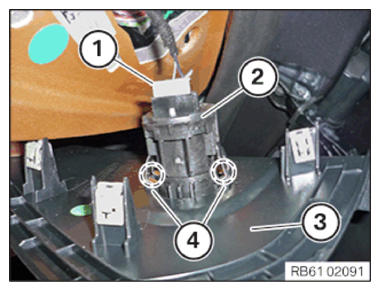

- Install the switch for switching off the front passenger airbag (2)
in the side cover (3)
of the instrument panel.
The lock (4) must engage audibly.
- Connect and lock the connector (1) to switch for switching off the front passenger airbag (2) .
Follow-up work
- Refer to INSTALLING THE SIDE PANEL ON DASHBOARD ON THE RIGHT .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
